Shrink Wrapping Machines

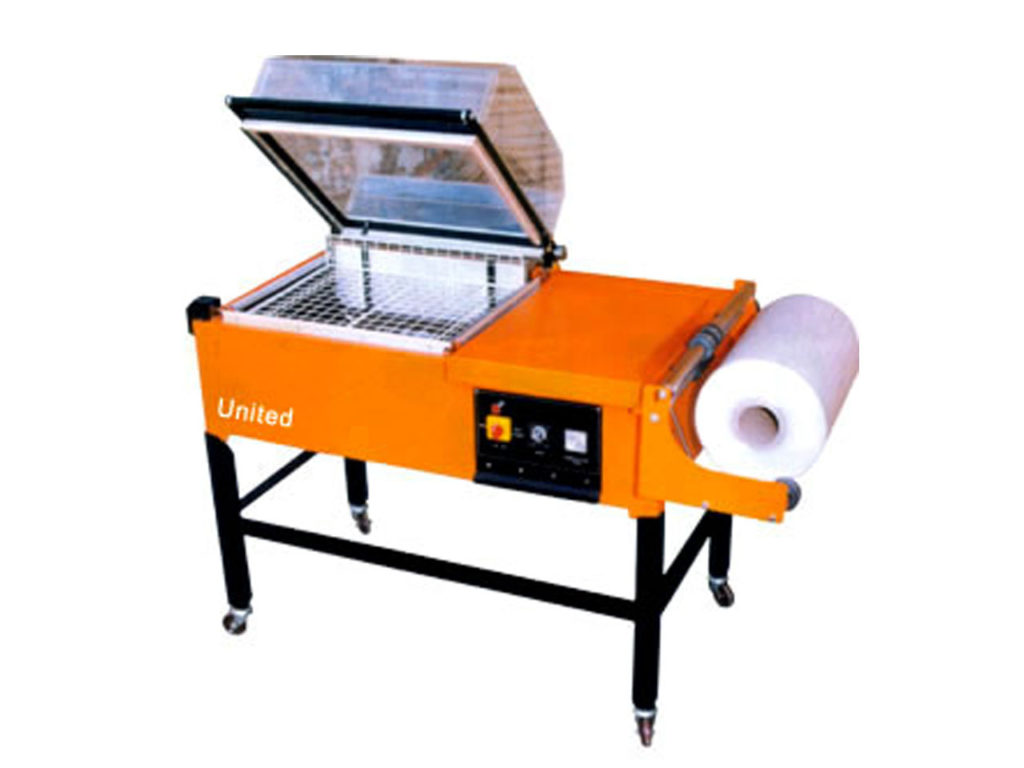

Shrink Wrapping Machine
Technical Specification
| Max. Packing Size | Power Supply | Heater Power | Machine Size | Machine Weight |
|---|---|---|---|---|
| 550 x 400 x 300 mm | 220 C 11 Phase | 2.5 KW | 136 x 73 x 145 cm | 120 kgs |
Salient Features
- Intergrated sealing and Shrinking; one to complete entire process;
- Low Electrical Consumption ideal for wrapping single Items or in Multi packs
- Other usual accessories
Technical Specification
| Specification | Model No. |
|---|---|
| Sealing Type | L-sealing by means of L-bar |
| Power Supply | 380V/50 - 60Hz/3phase |
| Max packing capacity | 35 packs per minute (depends on product size) |
| L-bar sealing size | 570 x 480 mm |
| Sealing height | 125 mm |
| Film type | center - folded polyolefin (POF) film |
| Max film size | 530mm (width) x 280mm (outer diameter) |
| Rated power consumption | 1.5 KW |
| Working height | 780 - 850 mm |
| Air pressure | = 0.5MPa (5 bar) |
| Sealing system | Permanently heated seal bar with easy - exchangeable sealing blade without odorous |
| Machine material | carbon steel |
| Closing conveying table | Sealing height: 180 mm |
| Other infeed conveyor | Special voltage |
| Power supply | 380V/50 - 60Hz/3phase |
| Oven size | 1200mm(L), entrance 450(W) x 220(H) mm |
| Conveyor speed | variable, 40 m/min |
| Conveyor | chains with rotating silicon coated rods |
| Rated power consumption | 7 kW |
| Working height | 780-850 mm |
| Machine material | carbon steel |

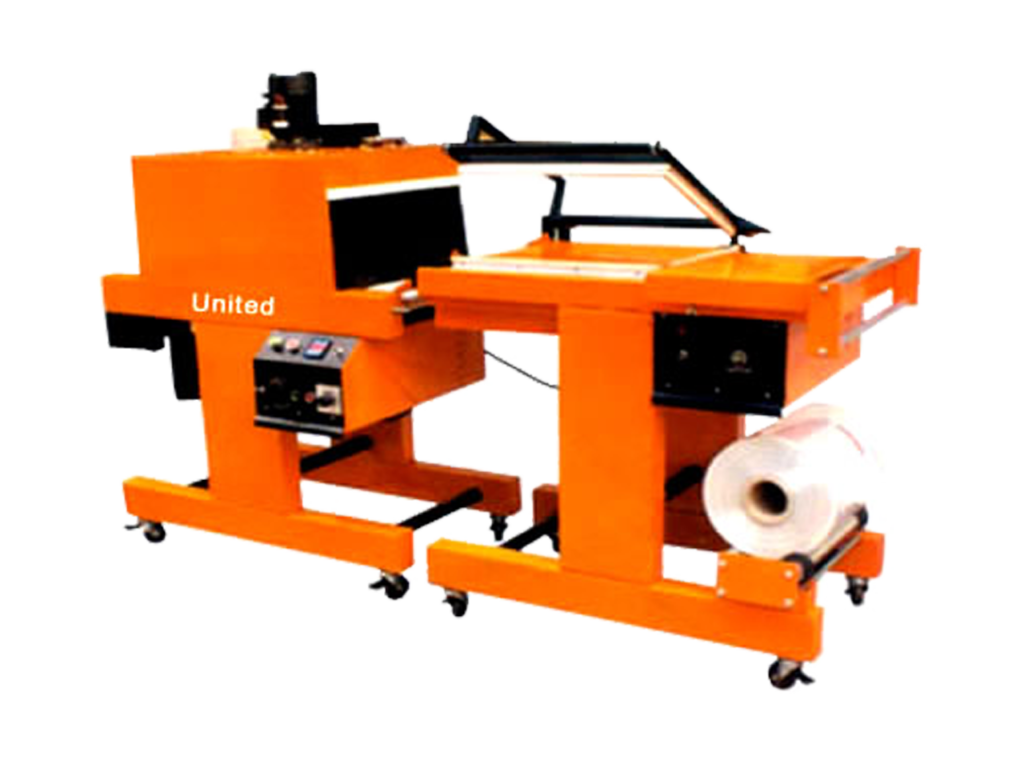

Shrink Wrapping Machine Tunnel type with L Sealer

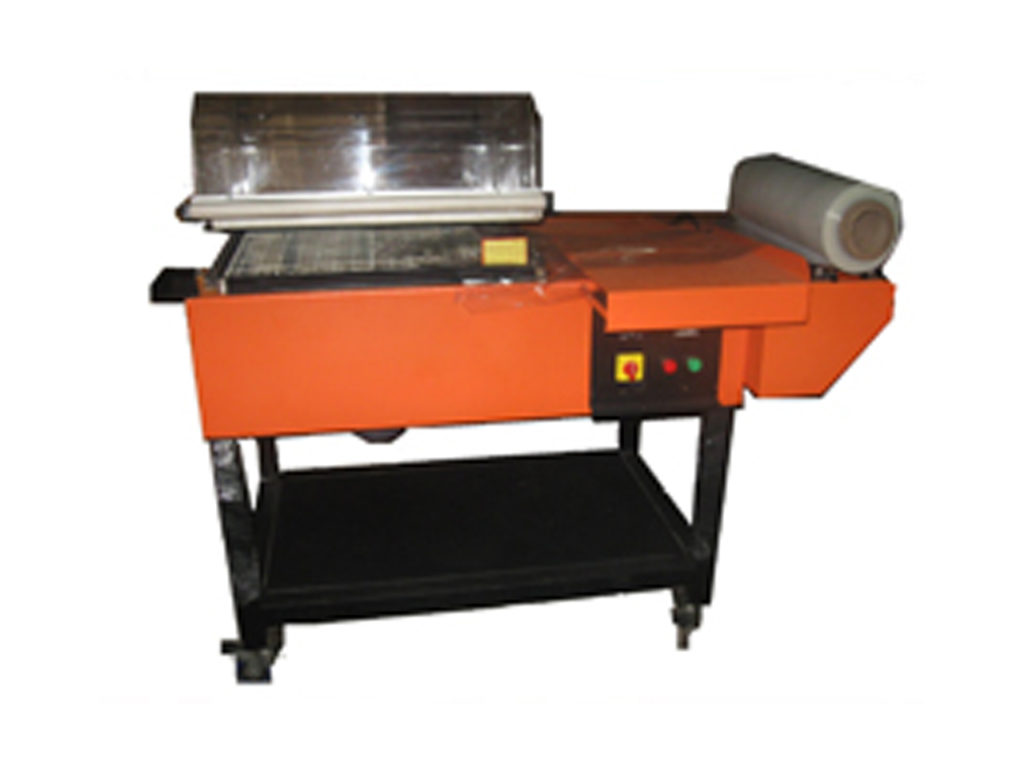

2 in 1 Shrink Chamber Machine
Technical Specification
| Specification | Model No. AP1520 |
|---|---|
| Power Requirement | 220V, 1Ph |
| Power Consumption | 1.8 Kw/Hr. |
| Sealing Dimensions (mm) | 500 x 375 |
| Max. Pack. Dimension (mm) | 450 x 325 x 300 |
| Warranty | 1 year + 1 year(Extended) |
