Lamination Machines

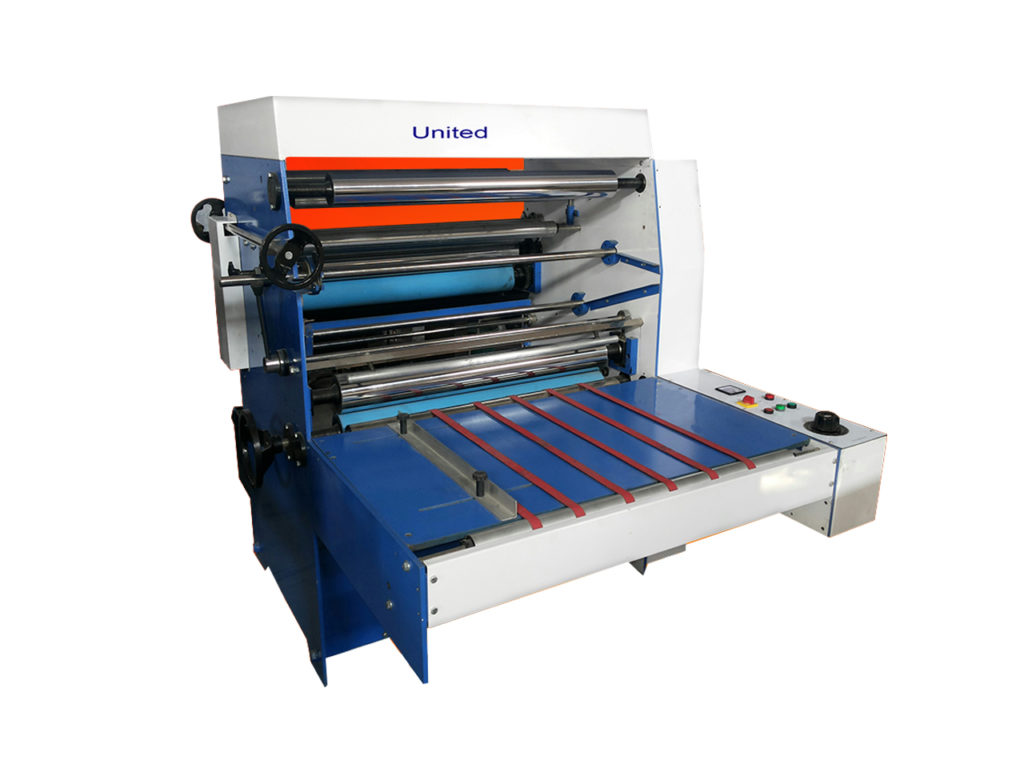

Lamination Machine
Technical Specification
| Platen Size | 24" 30" 36" |
|---|---|
| Lamination Width (max.) | 24" x any length |
| Speed Maximum | 1800' / ph |
| Power Load | 1.75 KW |
| Roll Width (Film) | 24" Max |
| Roll Diameter (Film) | 12" Min. |
| Dimensions (L x W x H) | 1800 mm x 1500 x 900 mm |
| Weight Approx | 900 Kilograms |

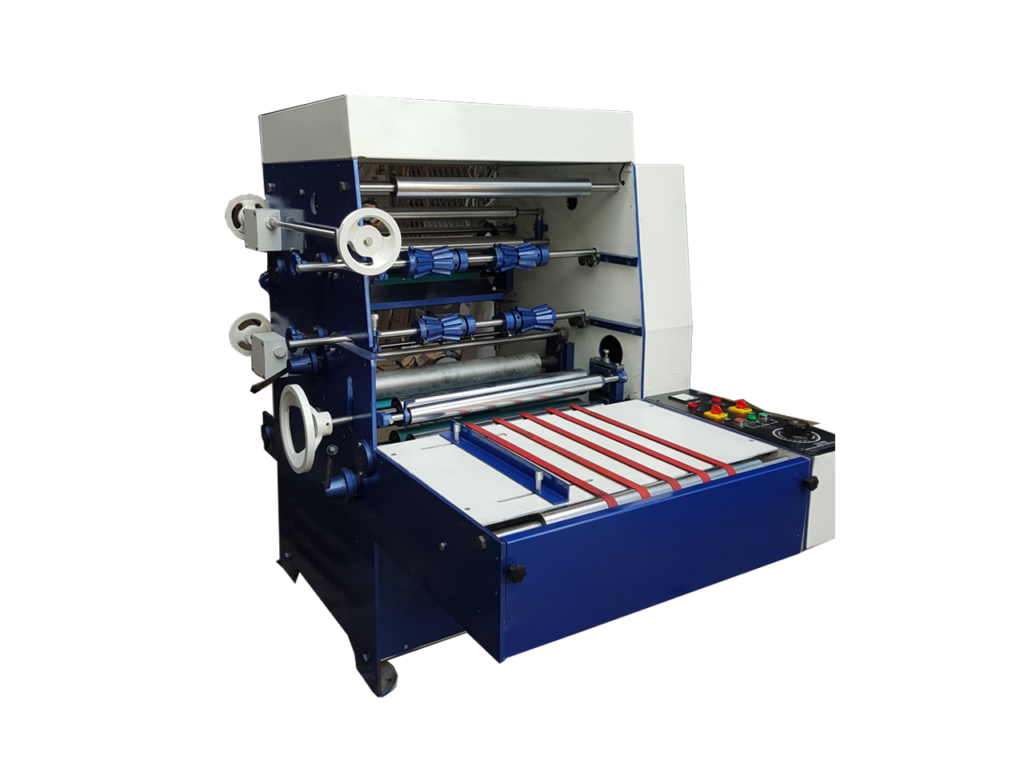

Lamination Machine with Texture Roll
Film Lamination Machine Plain Cum Window
Salient Features
- Provision from roll to roll lamination
- Extended feeding table
- Variable speed drive controls
- Adjustable gum tray
- All rollers are hard chrommed
- Film slitting attatchment
- Levers & brakes for wrinkle free finish
Technical Specification
| Size | 24" (610mm) | 30" (760 mm) | 36" (915 mm) | 42" (1065 mm)Max. |
|---|---|---|---|---|
| Laminating Width | 610 mm x any length | 760 mm x any length | 915 mm x any length | 1065 mm x any length |
| Speed | 0-600 mt. /Hr | 0-550 mt. /Hr | 0-500 mt. /Hr | 0-500 mt. /Hr.Max |
| Film Roll Width | 610 mm | 760 mm | 915 mm | 1065 mm Max |
| Film Roll Diameter | 305 mm | 305 mm | 305 mm | 305 mm |
| Power Required | 220V D.C. | |||
| Motor | 0.8 KW | 1.2 KW | 1.5 KW | 1.5 KW |
| Floor Space LxWxH | 1600 x 1270 x 1525 mm | 1780 x 1425 x 1525 mm | 1930 x 1525 x 1525 mm | 2085 x 1680 x 1525 mm |
| Weight Aprox. | 900 Kg. | 1000 Kg. | 1200 Kg. | 1300 Kg. |
Salient Features
Thermal and Plain Laminating Machine combined Designed to meet your Accuracy &Standards. MOST SUITABLE MACHINE FOR LAMINATORS, a most useful Thermal and Cold Lamination FROM THE LAMINATED ROLL available in two sizes 24″ & 30″ with motorised Hydraulic roller pressure.

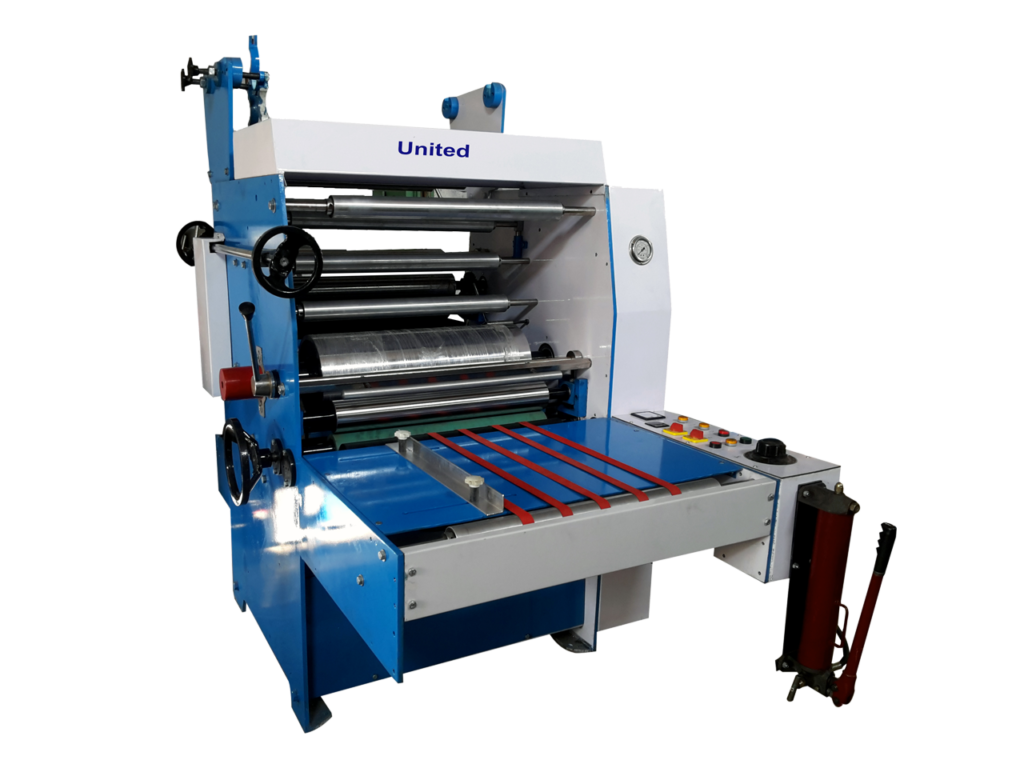

Hot & Cold Lamination Machine

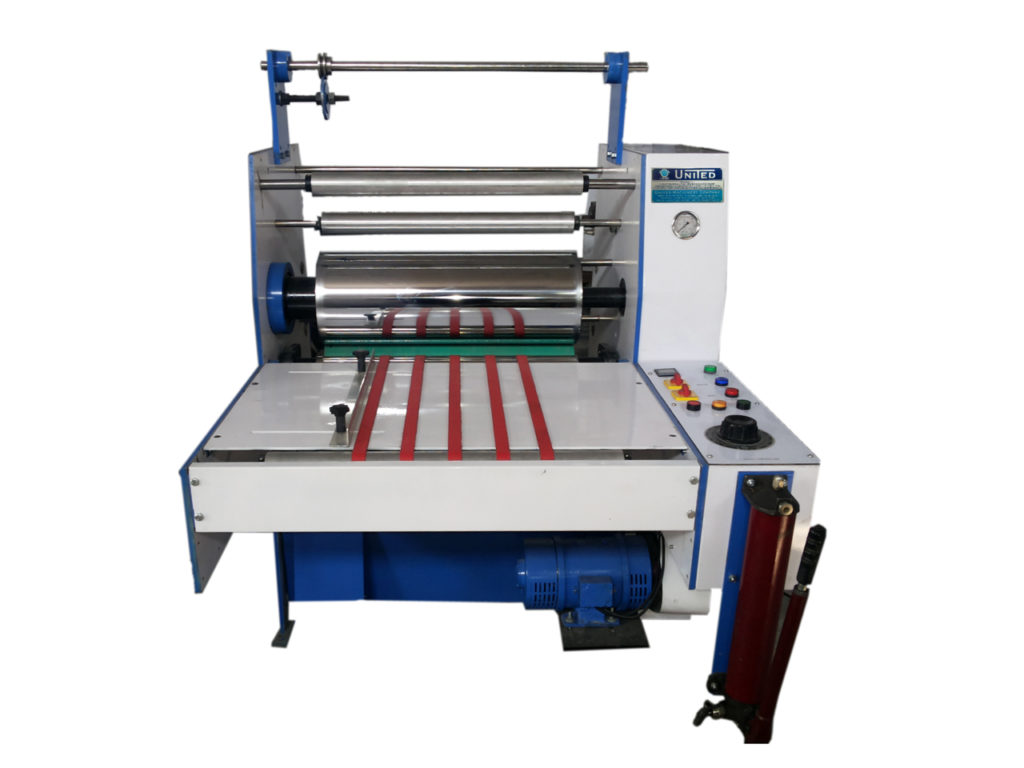

Thermal Lamination Machine
Technical Specification
| Available Size | 24" / 32" / 42" (600/800/1050 mm.) |
|---|---|
| Paper Stock Range | 800 - 500 gsm |
| Max. Machine Speed Mtrs/Min | 0 - 25 Mtrs |
| Heating System | Electrical With PID Controller |
| Power | 3000 Wts |
| Electrical Supply | 2 H.P 50/60 Hz 220/240 Volts |
Salient Features
Designed for professional printers this new thermal laminating machine is robsutly buit to meet the demands of printing houses for high quality laminating jobs.
Suitable for both offset and digital printing, the unique and innovative design of the calendaring unit of this machine positions it among the world class machines. The sheet enameled construction lends an excellent finish and look to the machine.
- Laminates one side at a time in gloss/matt film
- Digital Temperature controller Thermostatically controlled.
- Digital sheet counter
- Paper thickness: 80 to 500 gsm
- Pressure of ton Hydraulic Jacks
- Variable speed drive
- Hand held cutter quickly separates laminate sheets
- Hard chromed coating roller with mirror glass finish

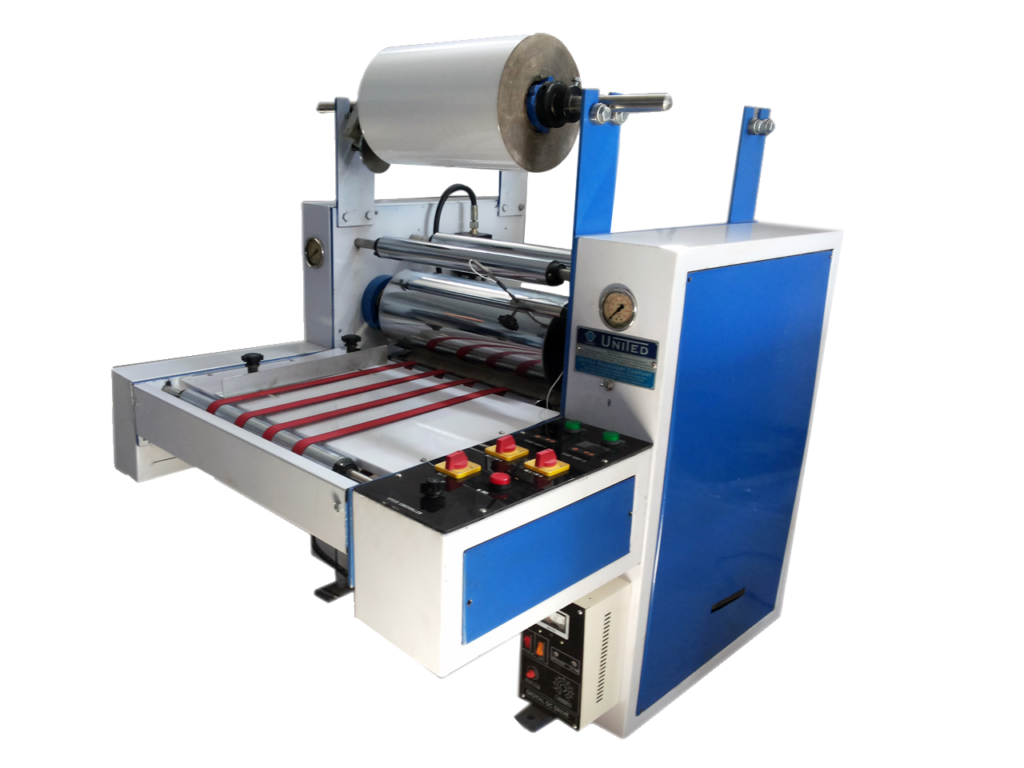

Mini Thermal Lamination Machine Both Side Album making

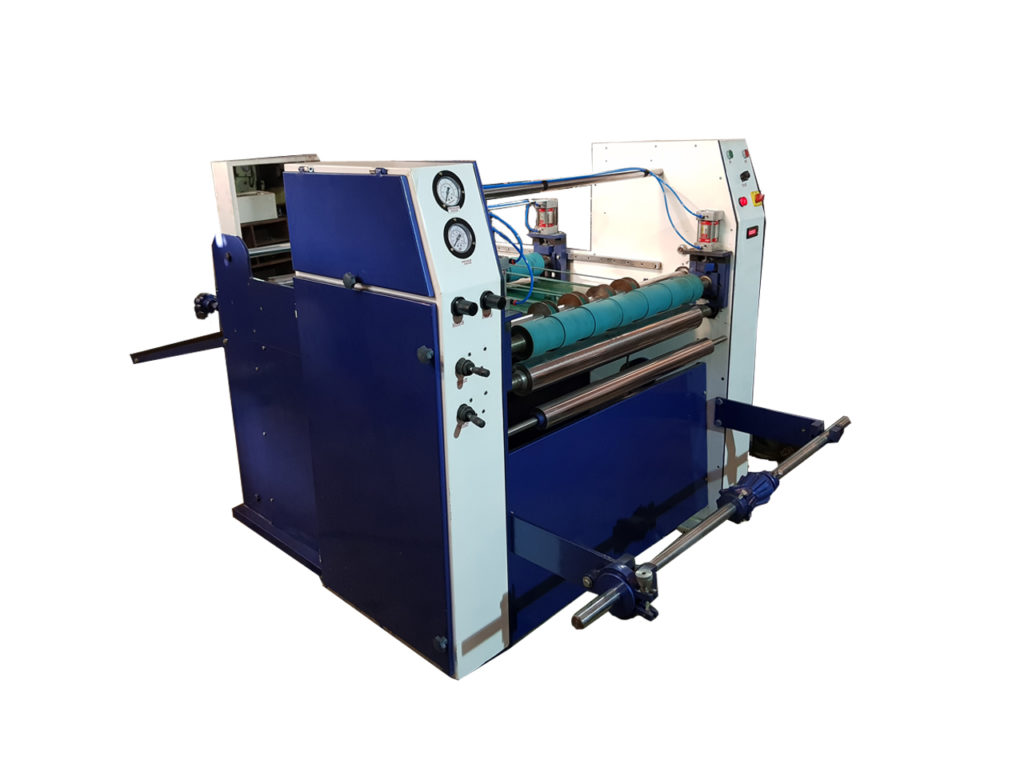

Lamination Sheet Separator Machine
Salient Features
Our Automatic Sheet Separator is a uniquely and the only designed Machine manufactured by us for cutting Laminated Sheet Rolls into the Sheet Form and stacking them on the adjustable table located on the back side. This separator can also be used online with Thermal Lamination Machines Manufactured by us and can also be used separately for cutting PVC , BOPP and POLYESTER Laminated Sheets.

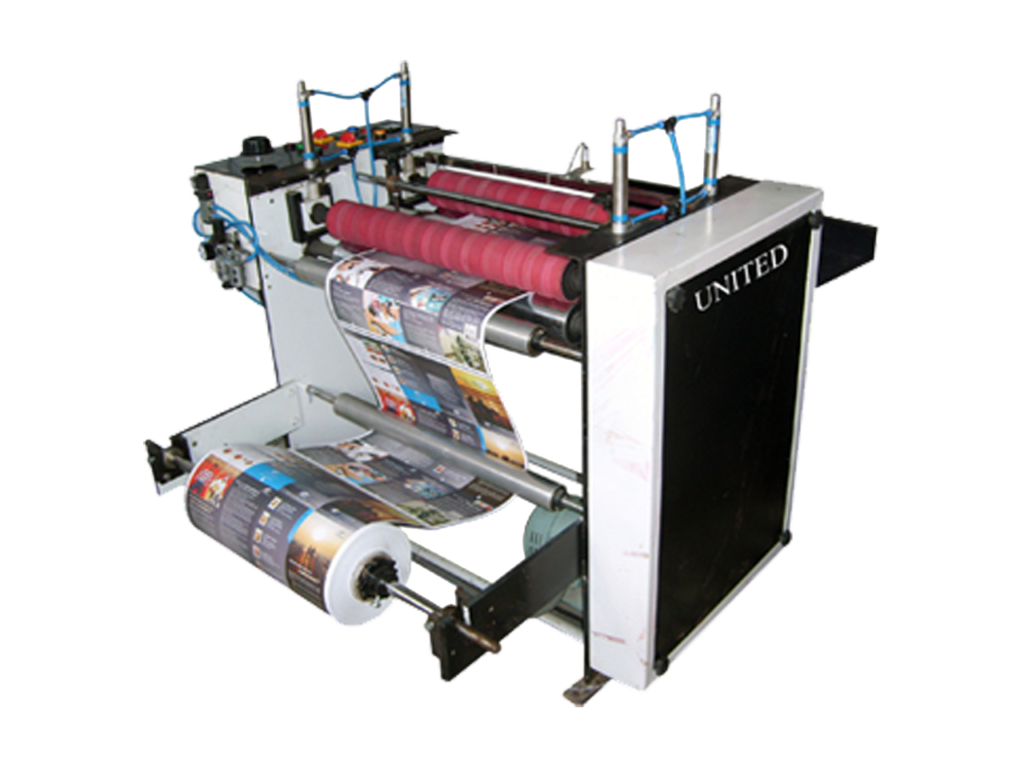

Automatic Lamination Sheet Separator
Technical Specification
| Available Size | 24" 30" 36" |
|---|---|
| Pressure System | Pneumatical system |
| Drive | D C Drive |
| Paper Thikness | 150gsm to 500gsm |
