Corrugation Box Plant Machines

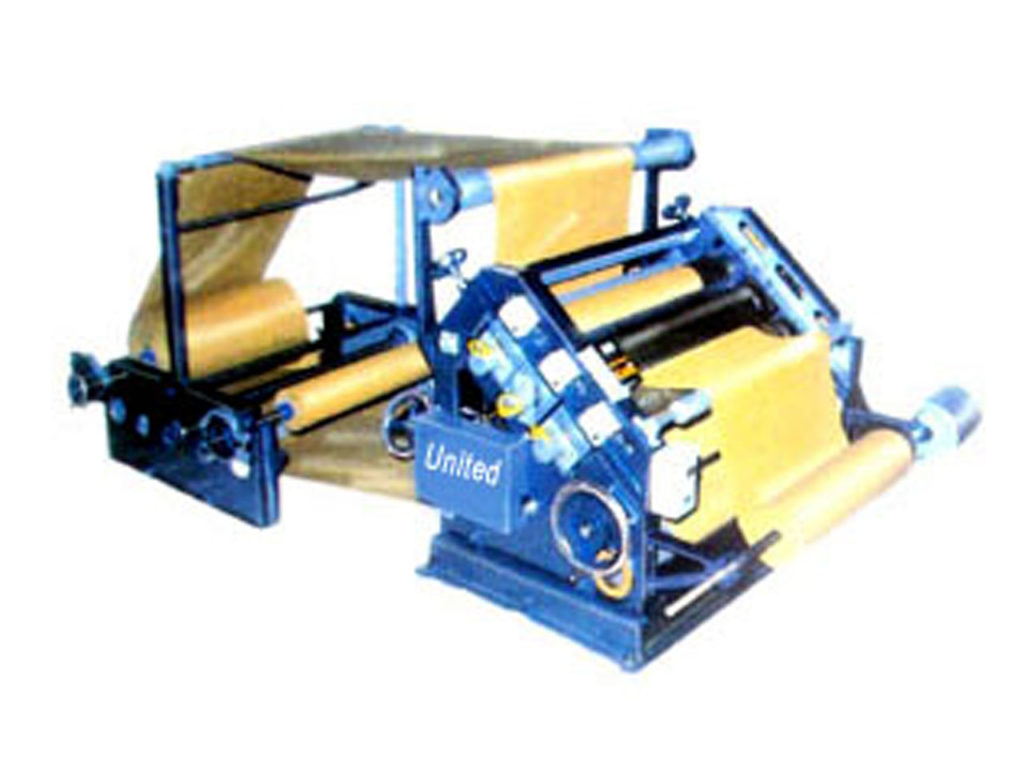

Oblique Type Single Face Paper Corrugating Machine
Technical Specification
To make 2 Ply corrugated Liner
| Size | Motor (HP) | Heating Load (KW) | Output RFPM |
|---|---|---|---|
| 42” | 3.0 | 22.5 | 90 |
| 45” | 5.0 | 22.5 | 90 |
| 52” | 5.0 | 27.0 | 90 |
| 62” | 7.5 | 33.0 | 90 |
Technical Specification
To make 2 Ply corrugated Liner
| Size | Motor (HP) | Heating Load (KW) | Output RFPM |
|---|---|---|---|
| 42” | 3.0 | 18.0 | 65 |
| 45” | 5.0 | 18.0 | 65 |
| 52” | 5.0 | 21.0 | 65 |
| 62” | 7.5 | 25.0 | 65 |

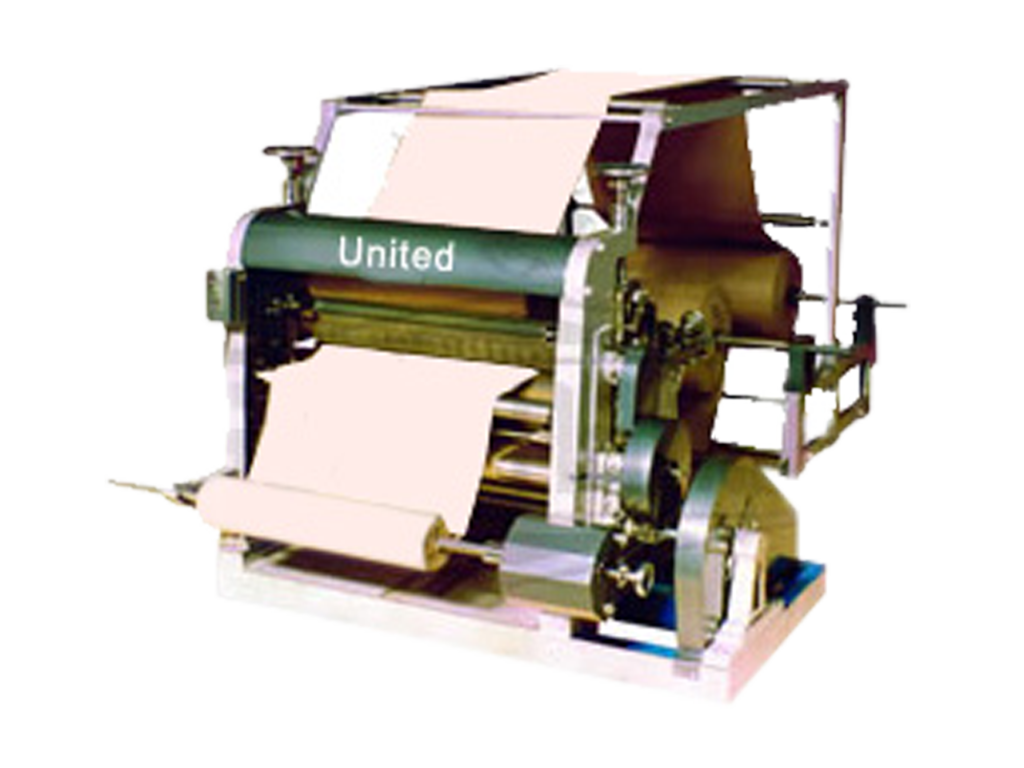

Vertical Type Single Face Paper Corrugating Machine

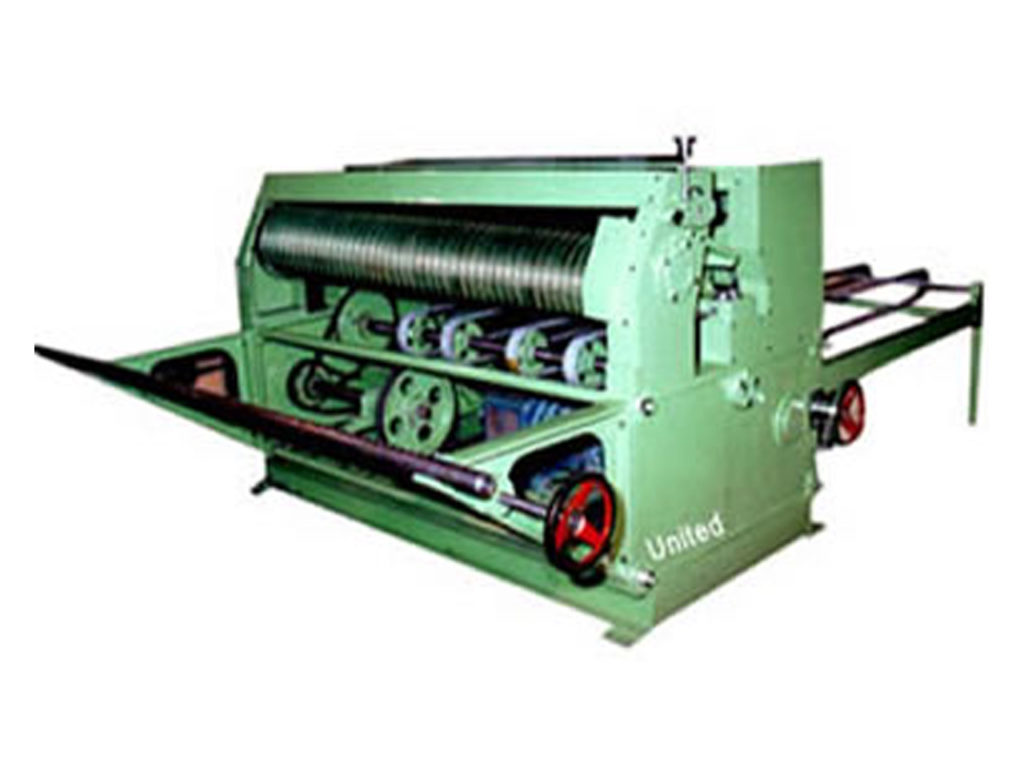

Reel to Sheet Cutter
Technical Specification
To cut corrugated Liner and Plain Paper
| Size | Cutting Width | Motor (HP) | Cutting Length (Min. – Max.) |
|---|---|---|---|
| 54" | 52" | 2.0 | 20” - 90” |
| 64" | 62" | 2.0 | 20” - 90” |
| 74" | 72" | 5.0 | 20” - 90” |
Technical Specification
To apply glue on the tips of corrugated surface of a board to make 3,5 & Ply Corrugated Sheet.
| Size | Motor (HP) | Output RFPM |
|---|---|---|
| 75” | 0.5 | 175 |
| 85" | 0.5 | 175 |
| 95" | 1.0 | 175 |

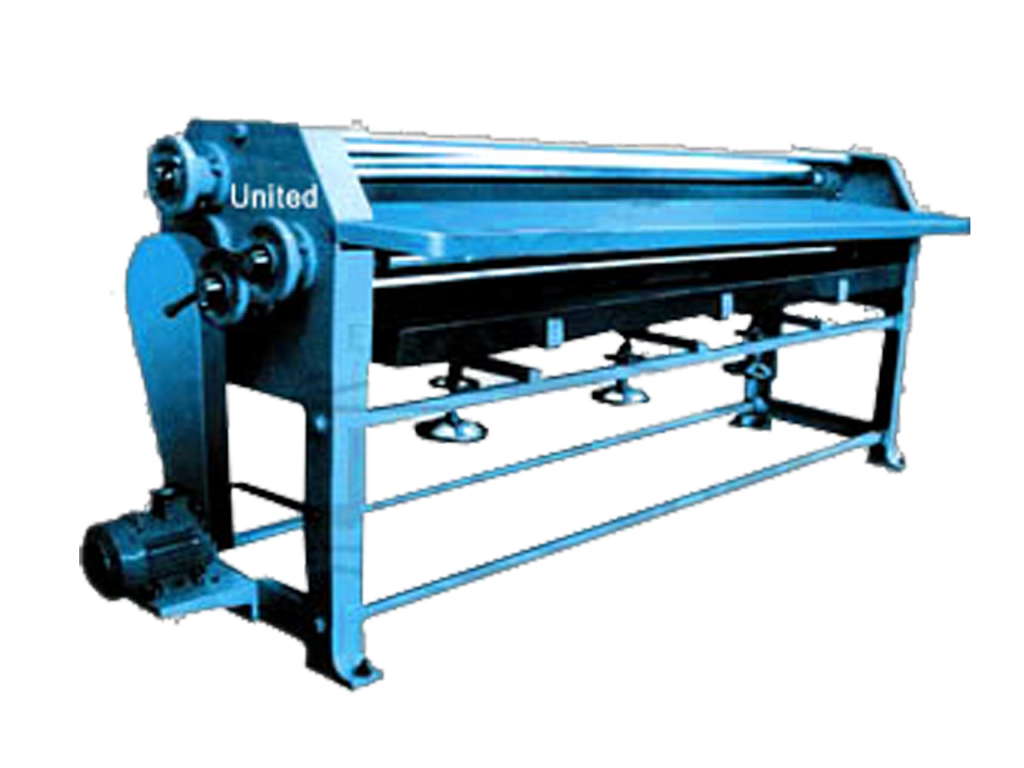

Sheet Pasting Machine

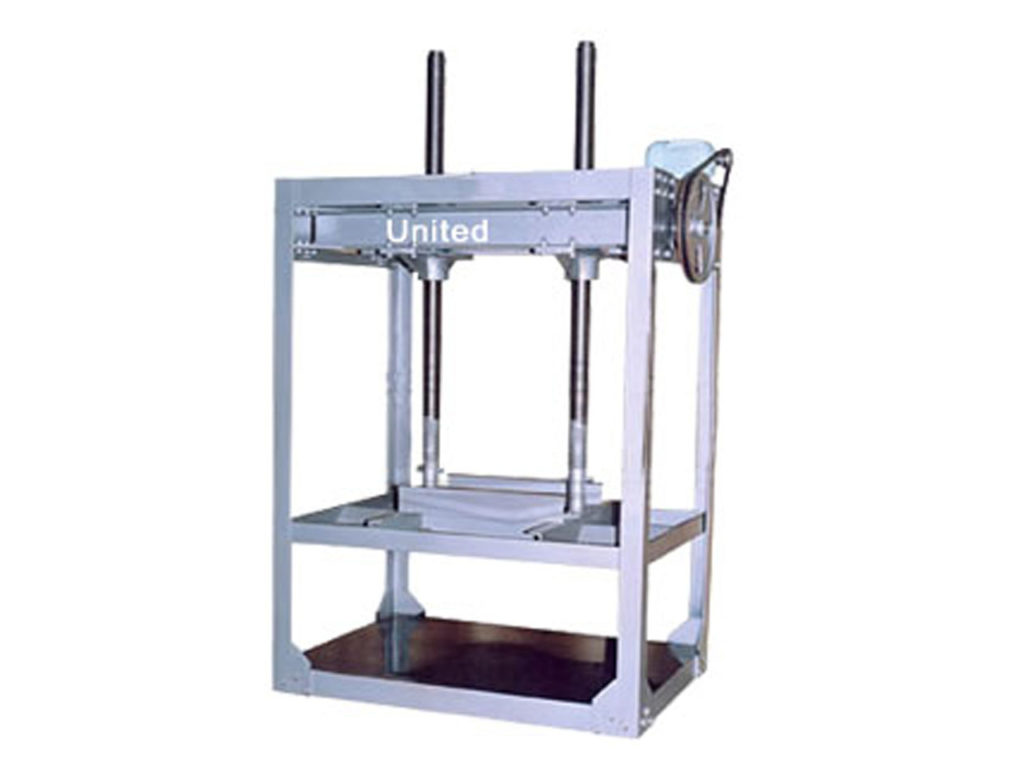

Sheet Pressing Machine
Technical Specification
To press the Corrugated Sheet
| Size | Motor (HP) | Output RFPM |
|---|---|---|
| 75” | 0.5 | 175 |
| 85" | 0.5 | 175 |
| 95" | 1.0 | 175 |
Technical Specification
For Creasing & Cutting the corrugated sheet
| Size | Motor (HP) | Output RFPM | Cutting Width (Min. – Max.) |
|---|---|---|---|
| 75” | 2.0 | 400 | 3” – 72” |
| 85" | 2.0 | 400 | 3” – 82” |
| 95" | 2.0 | 400 | 3” – 92” |

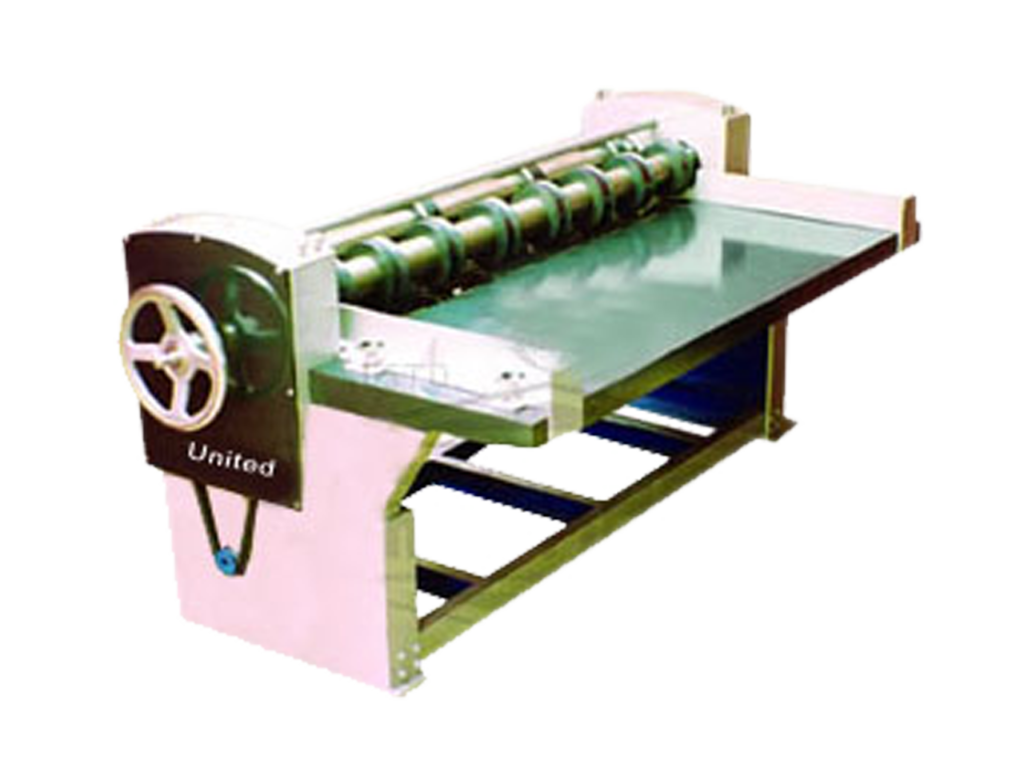

4-Bar Rotary Cutting & Creasing Machine

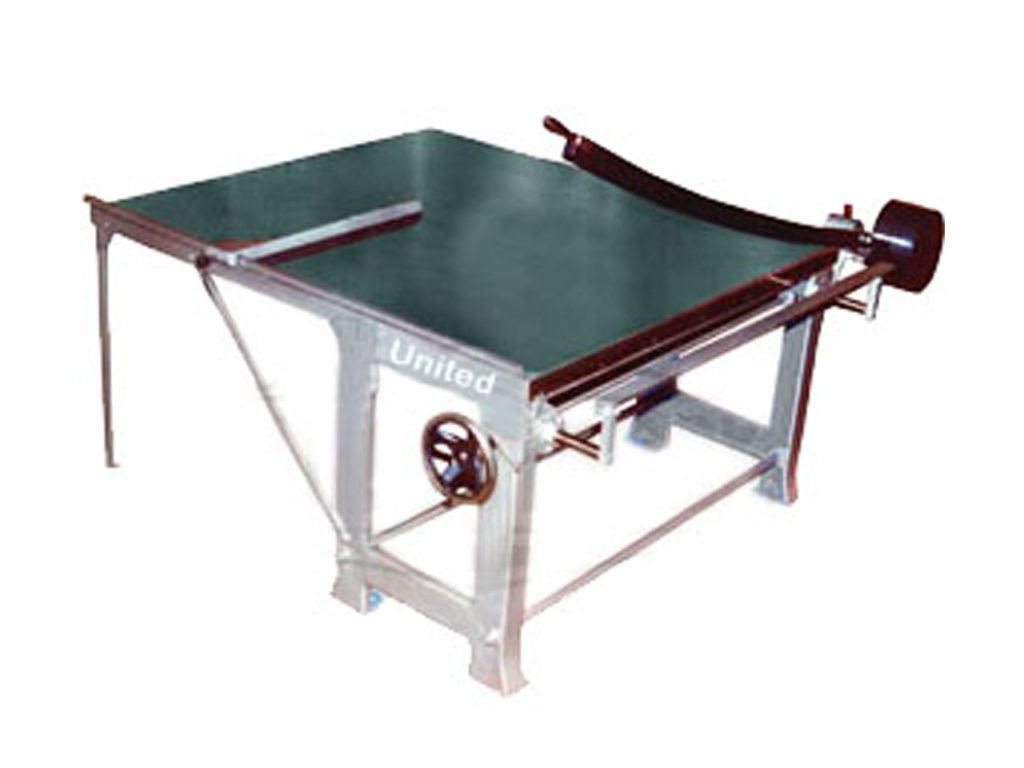

Board Cutter (Manual)
Technical Specification
To cut corrugated sheet and plain paper
| Size | |||
|---|---|---|---|
| Size | 48x65” | 58x65” | 65x65” |
Technical Specification
To slot & corner cut the corrugated sheet
| Size | Motor (HP) | Strokes PM | Cutting Width (Min. – Max.) |
|---|---|---|---|
| 75” | 3.0 | 28 | 4” – 72” |
| 85" | 3.0 | 28 | 4” – 82” |
Eccentric Slotter

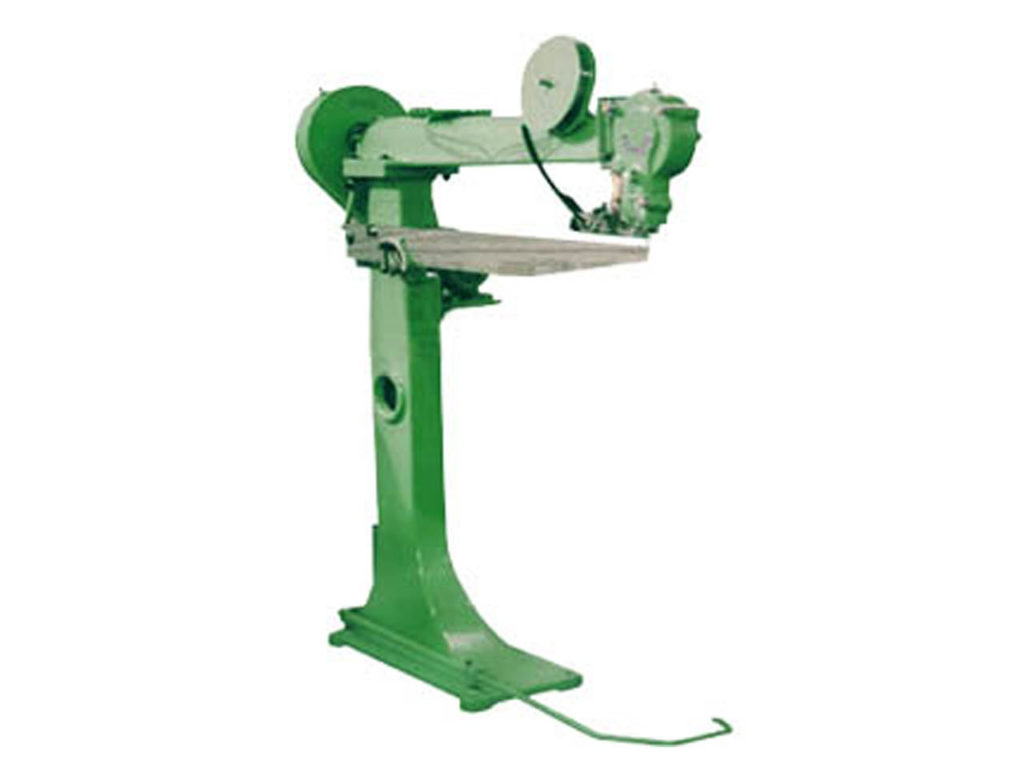

Box Stitching Machine
Technical Specification
For stitching the sheets to make boxes
| Size | Motor (HP) |
|---|---|
| 36" | 0.5 |
| 42" | 0.5 |
| 48" | 0.5 |
